Descrizione

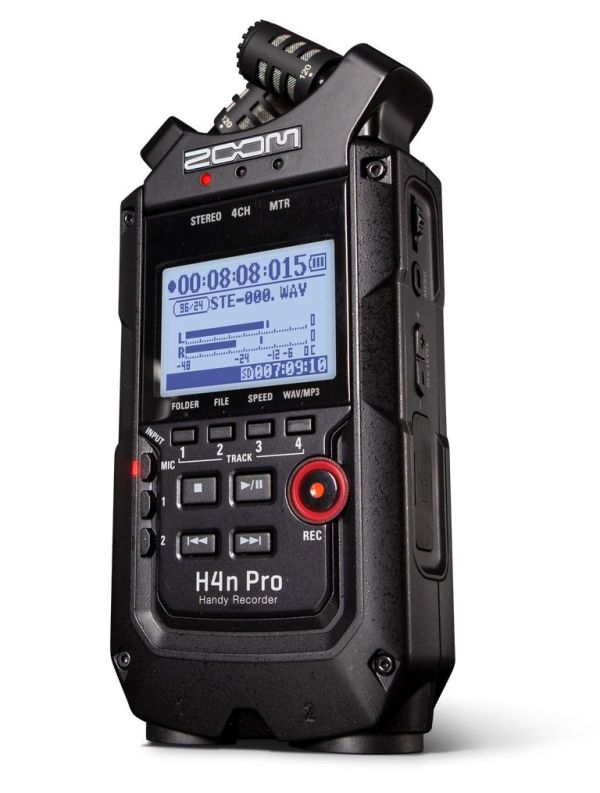

Dotato di microfoni X / Y, due jack di ingresso combo, preamplificatori microfonici di alta qualità dal suono incredibilmente naturale ed effetti all'avanguardia integrati rendono H4n Pro il registratore portatile a 4 tracce di riferimento per i musicisti e operatori audio video. Consente sovraincisioni, inserimento di effetti moltissime funzionalità che offrono ai musicisti e audio-video producer notevoli possibilità creative.
H4n Pro è in grado di registrare le performance più rumorose e pesanti, fino a 140 dB SPL senza distorsioni. Prendi un feed stereo a livello di linea * dal mixer e cattura l'atmosfera della stanza con i microfoni X / Y.
PREAMPI DI QUALITÀ PROFESSIONALE
H4n Pro è dotato di preamplificatori dal basso rumore con risoluzioni di registrazione fino a 24 bit / 96 kHz. Il rumore di fondo migliorato (-120 dBu EIN) cattura l'audio a volumi inferiori con meno rumore e meno artefatti.
Ha un'interfaccia audio USB a 2 ingressi / 2 uscite per PC o Mac, che consente di registrare direttamente sul proprio computer.
Four-track simultaneous recording
- High-fidelity mic preamps
- Built-in X/Y stereo microphones, adjustable between 90˚ and 120˚
- Record up to 140 dB SPL with X/Y microphones
- Two mic/line level inputs with XLR/TRS combo connectors
- Stereo 1/8" Mic In mini phone jack
- +24 or +48V phantom power for main inputs and Plug-in power (2.5V) via Mic/Line In mini phone jack
- Output/headphone jack with dedicated volume control
- Records directly to SD and SDHC cards up to 32 GB
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
- 2-in/2-out USB audio interface for PC/Mac computers
- Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
- Runs on 2 standard AA alkaline or NiMH rechargeable batteries with up to 6 hours of operation (up to 10 hours in Stamina mode)
| NUMBER OF SIMULTANEOUS RECORDING TRACKS: | 2 (STEREO mode), 4 (4CH mode), 2 (MTR mode) |
| RECORDING TIME 4 GB (SDHC): | Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track) |
| Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track) | |
| * Recording times are approximations. Actual times may differ according to recording conditions. | |
| MAXIMUM FILE SIZE OF SIMULTANEOUS RECORDING: | 2 GB |
| PROJECTS: | 1000/card |
| LOCATE FUNCTION: | Hours/Minutes/Seconds/Milliseconds |
| OTHER FUNCTIONS: | Punch-in/out, Bounce, A-B repeat |
| EFFECTS MODULES: | 2 |
| STEREO / 4CH Mode: LO CUT, COMP/LIMITER | |
| MTR Mode: PRE AMP module, EFX module | |
| TYPES: | 53 |
| PATCHES: | 60 |
| TUNERS: | Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD |
| METRONOME SOUND SOURCES: | 5 |
| VARIABLE BEAT: | 1/4 – 8/4, 6/8, unaccentuated |
| TEMPO: | 40.0 – 250.0 BPM |
| A/D CONVERSION: | 24-bit × 128 oversampling |
| D/A CONVERSION: | 24-bit × 128 oversampling |
| RECORDING MEDIA: | SD card (16 MB – 2 GB), SDHC card (4 GB – 32 GB) |
| DISPLAY: | 128 x 64 dots Full-dot backlit LCD |
Data Type – WAV Format (Record/Play)
| QUANTIZATION: | 16- / 24-bit |
| SAMPLING FREQUENCY: | 44.1 / 48 / 96 kHz |
Data Type – MP3 Format (Recording)
| BIT RATE: | 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR |
| SAMPLING FREQUENCY: | 44.1 / 48 kHz |
Inputs
| INPUT [1] [2]: | XLR (balanced input) / standard phone (unbalanced input) combo jack |
| INPUT IMPEDANCE: | (Using balanced input) 3 kΩ or more, pin 2 hot |
| (Using unbalanced input) 470 kΩ or more | |
| INPUT GAIN: | (Using balanced input) −16 dB to +43 dB |
| (Using unbalanced input) -30 dB to +32 dB | |
| BUILT-IN STEREO MIC: | Unidirectional condenser microphone |
| Sensitivity: -45 dB/1 Pa at 1 kHz | |
| Input gain: -16 dB to +51 dB | |
| Maximum sound pressure input: 140 dB SPL | |
| EXTERNAL MIC: | Mini stereo phone jack |
| Input impedance: 2 kΩ or more | |
| Input gain: – 16 dB to +51 dB |
Outputs
| LINE/PHONE: | LINE Output load impedance: 10 kΩ or more |
| LINE rated output level: -10 dBu | |
| PHONE: 20 mW + 20 mW (into 32Ω load) | |
| MONAURAL SPEAKER: | 400 mW 8 Ω |
| PHANTOM POWER: | 48V, 24V, OFF |
| USB: | USB 2.0 High Speed Mass Storage Class operation, Audio interface operation |
| (USB functions can be operated by USB bus power) | |
| POWER REQUIREMENTS: | DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AA batteries |
| BATTERIES: | IEC R6 (size AA) x 2 |
| CONTINUOUS RECORDING TIME: | STEREO mode |
| Using built-in mics at 44.1 kHz/16-bit without headphones connected | |
| About 6 hours using alkaline batteries or about 8 hours using NiMH (2450mAh) batteries | |
| STAMINA mode | |
| Using built-in mics at 44.1 kHz/16-bit without headphones connected | |
| About 10 hours using alkaline batteries or about 12 hours using NiMH (2450mAh) batteries | |
| DIMENSIONS: | 73 (W) × 157.2 (D) × 37 (H) mm |
| WEIGHT: | 294 g |
| * 0 dBm = 0.755 Vrms | |
| * Design and specifications subject to change without notice. |
